8 Bit Data And 10 Bit Adrress Radio Control

This Decoder give 8 Bit Data and 10 Bit Address. HT-648L is the main schematic.

How Build Radio Control Switch

This is A Simple RC switch Using IC 4001 and Transistor BC547.

Radio Control Using DTMF

This Schematic using IC UM91214B for transmitter and using IC KT3170/8870 for Receiver,
this IC usually use for telephone to generate DTMF tone.

Receiver RF Modul using Max-1473

COMPONENT ;VALUE FOR 433MHz RF ;VALUE FOR 315MHz RF ;DESCRIPTION L1 ;56nH ;110nH ;Toko LL1608-FH L2 ;15nH ;15nH ;Murata LQP11A L3 ;15nH ;27nH ;Murata LQP11A C1 ;100pF ;100pF ;5%C2 ;2.7pF ;4.7pF ;±0.1pF C3 ;100pF ;100pF ;5%C4 ;100pF ;100pF ;5%C5 ;1500pF ;1500pF ;10%C6 ;220pF ;220pF ;5%C7 ;470pF ;470pF ;5%C8 ;0.47µF ;0.47µF ;20%C9 ;220pF ;220pF ;10%C10 ;0.01µF ;0.01µF ;20%C11 ;0.01µF ;0.01µF ;20%C12 ;15pF ;15pF ;Depends on XTAL C13 ;15pF ;15pF ;Depends on XTAL R1 ;5k? ;5k? ;5%X1 ;6.6128MHz or 13.2256MHz ;4.7547MHz or 9.5094MHz ;— X2 ;10.7MHz ceramic filter ;10.7MHz ceramic filter ;Murata SFECV10.7 series ;;;

Modul RF Transmitter using MAXIM 1472

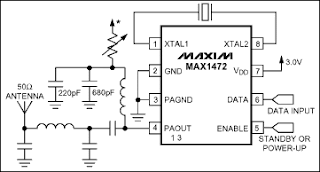

Modul RF using MAXIM 1472

Basic Radio Control Encoder

This is just a simple multivibrator with one timing resistor selected by a CMOS Johnson counter. In this way the start of each pulse is determined by a different potentiometer. Each potentiometer should vary from 0 to 100K. Note that normal joysticks used for computers may be fitted with a linear 100K pot but provide only 60 degrees of the total 300 degrees of movement. This means that you should either fit a 500K pot or change the timing capacitors (10n) in the encoder circuit.
The ON pulse from the multivibrator should be about 300nS to 400nS in length and the OFF pulse should vary from 200nS to 1200nS. With this timing you should be able to drive almost any of the cheaper servo's (eg. Futaba, Horizon etc). The servo should give you a 180 degree movement for the full movement of the encoder pot. The 10K resistor in the encoder circuit prevents a zero-ohm pot stuffing the full supply voltage on the base of the transistor. The 300K resistor determines the length of the silence between each channel pulse-train. This period of silence should be about 4mS or more. The 4017 outputs 0 - 8 can be used to give you 9 independant proportional channels but the tenth is used to provide the silence between each channel pulse-train. I have only shown six channels in the drawings so output 7 must be used to reset the counter back to 0 again.

Basic Radio Control Decoder

OP-Amp "a" amplifies the incoming pulses from the receiver. This stage is self biassed and may be connected directly to the output of a ZN414Z, ZN416E or any other output with between 0 to +6vDC standing potential. If the output of the receiver is capacitively coupled, has a standing negative DC potential or is DC grounded then couple the signal in via a 10nF capacitor and connect a high value resistor (470K - 2M2) between the two points marked with an "X". The output of this stage should be a near perfect square-wave. This square-wave is used to clock the channel counter and "top-up" the charge of a capacitor.
OP-Amp "b" compares the charge on the "top-up" capacitor. During the 4mS silent period this capacitor will discharge causing OP-Amp "b" to reset the counter. Note that the 4017 output 0 is a reset output and the channel outputs are 1 to 6 (up to 9). The output signal from each channel terminal is a single pulse which varies from 600uS to 1600uS depending upon the setting of the encoder channel potentiometer.
A normal servo has three wires; Black, Red and White. Black is negative, Red is +6vDC and the white is the pulse input from the receiver. Servo's normally draw 300mA to 500mA which may disturb the recever. If this is the case then feed the +DC supply to the servo via a 10 ohm resistor and feed the receiver +DC supply via a diode and connect a 470uF accross the receiver supply.

Radio Control Using MC-145026 & MC-145027

These devices are designed to be used as encoder/decoder pairs in remote control applications.
The MC145026 encodes nine lines of information and serially sends this information upon receipt of a transmit enable (TE) signal. The nine lines may be encoded with trinary data (low, high, or open) or binary data (low or high). The words are transmitted twice per encoding sequence to increase security.
The MC145027 decoder receives the serial stream and interprets five of the trinary digits as an address code. Thus, 243 addresses are possible. If binary data is used at the encoder, 32 addresses are possible. The remaining serial information is interpreted as four bits of binary data. The valid transmission (VT) output goes high on the MC145027 when two conditions are met. First, two addresses must be consecutively received (in one encoding sequence) which both match the local address. Second, the 4 bits of data must match the last valid data received. The active VT indicates that the information at the Data output pins has been updated.

Simple Radio Control Receiver Using HT

1. RWS Gnd to header-pin #1
2. RWS Vcc to header-pin #3
3. RWS Digital-Output to header-pin #2

HT-12E encoder data transfers to HT-12D data-pins via RF transmission.
VT-pin transitions from low to high on valid reception & address.
More detailed information is available from http://www.rentron.com
For 8-bit RF remote control, substitute the HT-12D with HT-648L decoder.

Simple Radio Control Transmitter Using HT

Using IC HT12-E we can Create R/C Transmitter very Easy
This IC have 8 Bit address.

Radio Control Application
